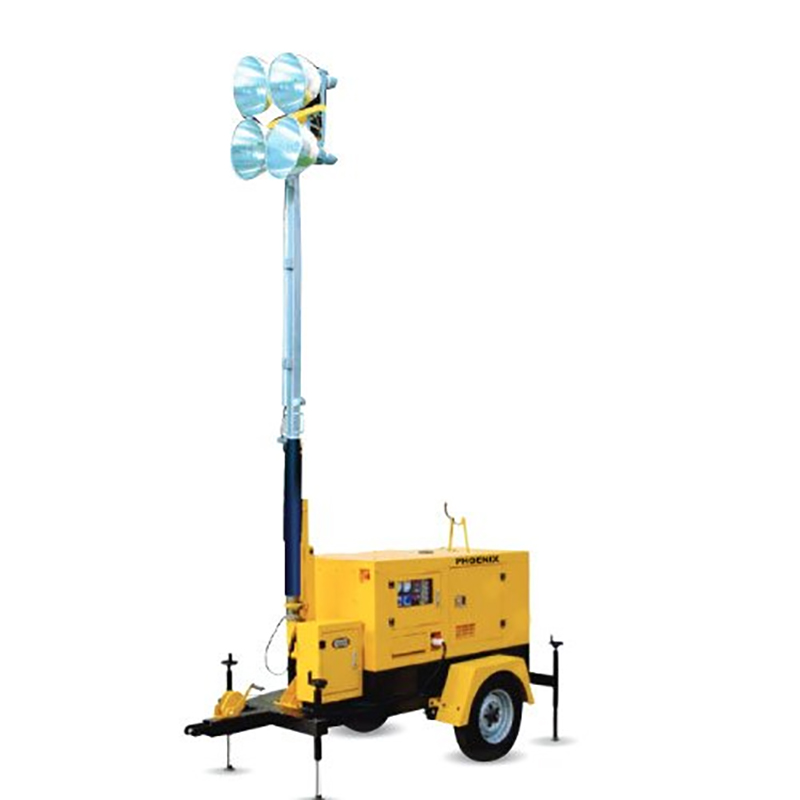

MaxPro Mobile Lighting Tower LED Floodlight

Short Description:

Mobile lighting towers have the advantages of high light efficiency, long life, high temperature resistance, light weight, and easy to carry. They are deeply loved by people. They are mainly used in construction lighting, rescue and disaster relief and mines. At present, mobile lighting towers are mainly divided into manual and Automatic two, in order to suit the application in different scenarios. The mobile lighting tower uses 4 200W LED lights, the lamp holder can change the projection angle in the vertical direction from 0° to 90°; the lamp pole rises: 10 meters, rise time: 50S, fall time: 20S; the light coverage radius can be Up to 120 meters-150 meters.

Features

● Lumileds LUXEON 3030 2D LEDs and 5050 LEDs optional

● Colour Temperature 2200-6500k, CRI >74,80,92

● Modular design, Easy assembly and maintenance

● >75,000 life time to 70% lumen maintenance

● Excellent thermal management

● Ultra-low glare and flicker free

● Zigbee wireless, 0-10V, DALI and DMX dimming models optional

● Daylight&Microwave sensor, glare shield and slip fitter are available

● Marine grade coating plus 316 stainless steel components available for corrosive environments such as swimming pools and coastal regions.

● Housing color: Black, Grey, White, Silver


Product Detail

Specifications

Download

Overview

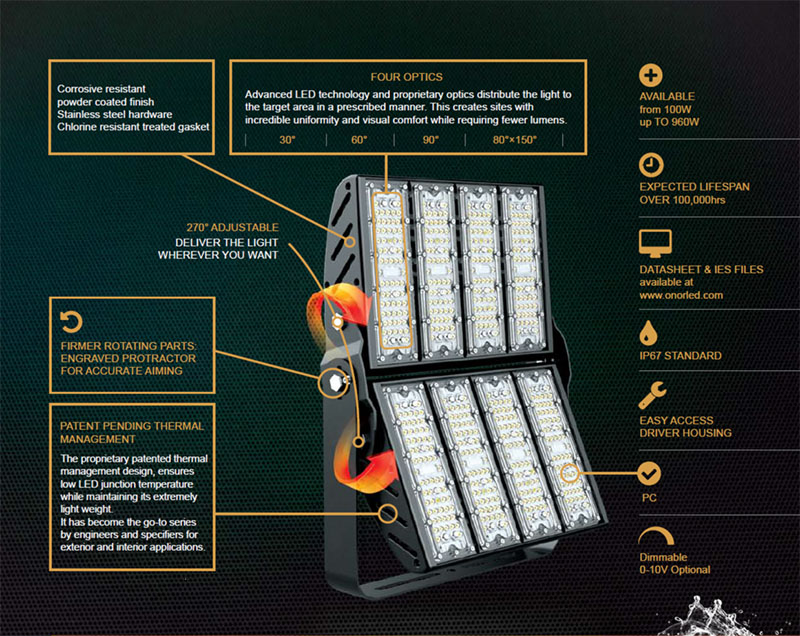

600W Outdoor LED High Mast Lighting7

Ultra low power requirements for less power demand and more available generator surplus power. Unaffected by outdoor temp.

IP-66 Ingress protection rating provides complete protection from water and dust intrusion with extremely high shock resistance.

Lifespan of 80,000h to 100,000h requires no replacement of bulbs. Instant on/off with no warm up or re-strike wait times.

Optimized colour temperature and wavelength provides more available usable light than 4800 watts of metal halide.

Quick detach four section light tower extends up to 23ft. approximately 6 ft. retracted. Fully adjustable lighting direction.ft. approximately 6 ft. retracted. Fully adjustable lighting direction.

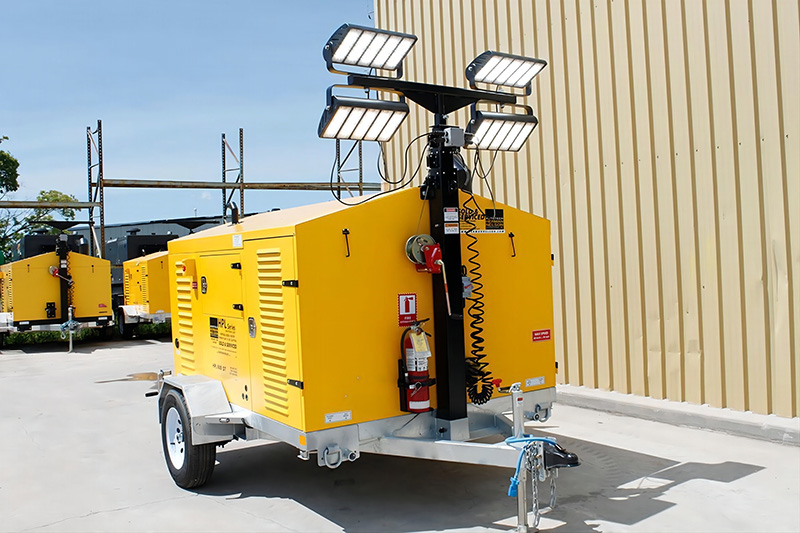

MaxPro Mobile Lighting Tower LED Floodlight29
MaxPro Mobile Lighting Tower LED Floodlight1

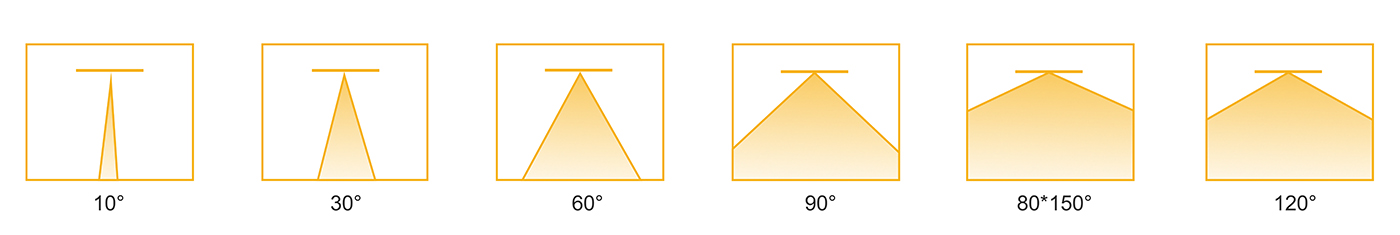

Optical Beam Angles

MaxPro Mobile Lighting Tower LED Floodlight2

Various Application and Usages

MaxPro Mobile Lighting Tower LED Floodlight11

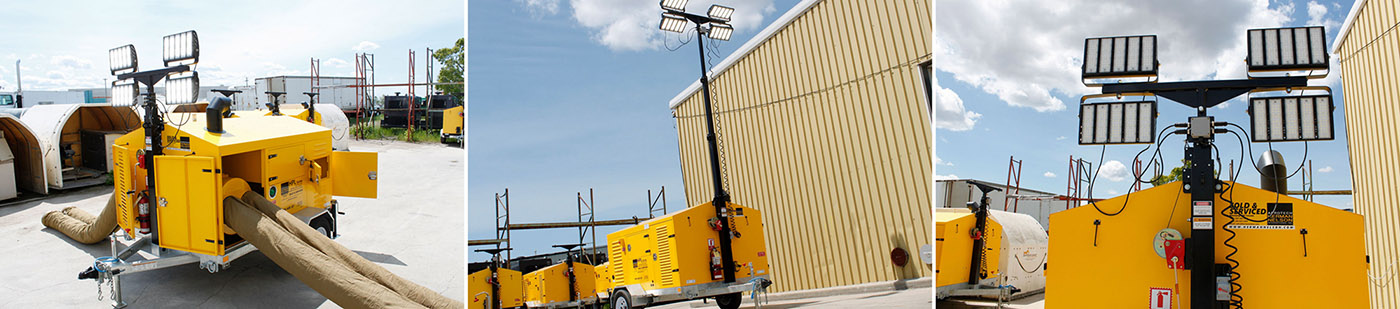

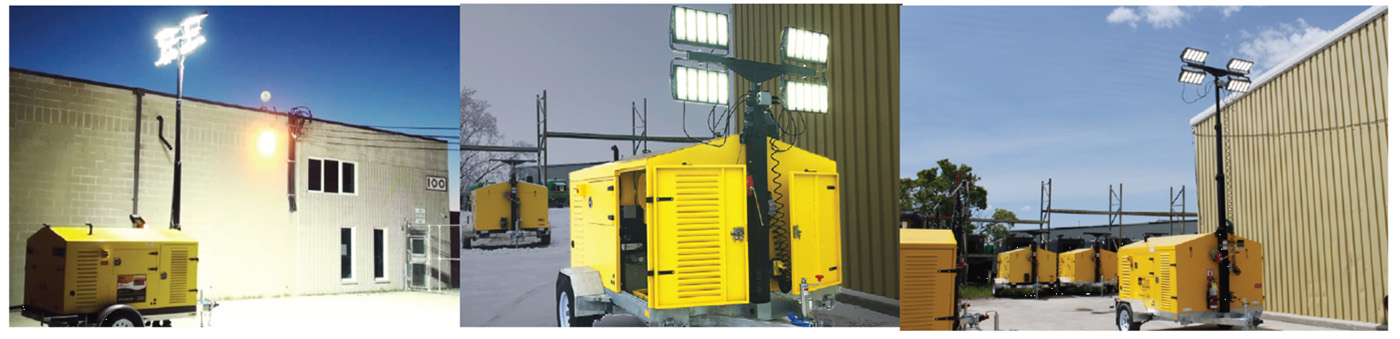

Projects

MaxPro Mobile Lighting Tower LED Floodlight25
MaxPro Mobile Lighting Tower LED Floodlight22

  • Previous:
  • Next:

  • Model NO.

    ONOR-FL-100W

    ONOR-FL-150W ONOR-FL-200W ONOR-FL-240W

    ONOR-FL-300W

    ONOR-FL-400W

    ONOR-FL-480W

    ONOR-FL-600W

    ONOR-FL-800W

    ONOR-FL-960W

    Rated Power

    100W

    150W

    200W

    240W

    300W

    400W

    480W

    600W

    800W

    960W

    Lumen Output

    15,000lm

    22,500lm

    30,000lm

    36,000lm

    45,000lm

    60,000lm

    72,000lm

    90,000lm

    120,000lm

    144,000lm

    Input Voltage

    110-277VAC, 480VAC optional

    Driver Brand

    Inventronics, MeanWell, Philips

    Power Factor

    0.98

    Working Temperature

    -40°C – +50°C

    Protection Class

    IP67

    Impact Resistance

    IK10

    Materials

    Aluminium Body, PC for lens

    Dimension

    195*87*318mm

    269*87*318mm

    345*87*318mm

    421*87*318mm

    498*87*318mm

    430*87*590m

    518*87*590m

    606*87*590m

    782*87*590m

    958*87*590m

    Weight 4KG 5KG 6KG 7KG 12KG 14KG 15.5KG 18KG 25KG 29KG
    Lifespan

    100,000 hours

    CCT

    2200K, 2700K, 3000K, 4000K, 5000K, 5700K, 6500K

    Beam Angle

    8°/15°/30°/ 60°/ 90°/ 120°/80*150°

    CRI

    Ra>74/80/92

    Dimming Model

    1-10V/DMX/DALI/ZIGBEE

    Surface Treatment

    Galvanizing for brackets, visor, cover, Sand-blasting for aluminum parts, Akzo Nobel Powder Coating for All

    Earth Connection

    Class I

    Warranty

    10-Years on the LEDs, 5-7 Years on the Driver
