Case Studies

Complex Sports Hall LED Lighting

Completed Date: July. 2021

Location: Poland

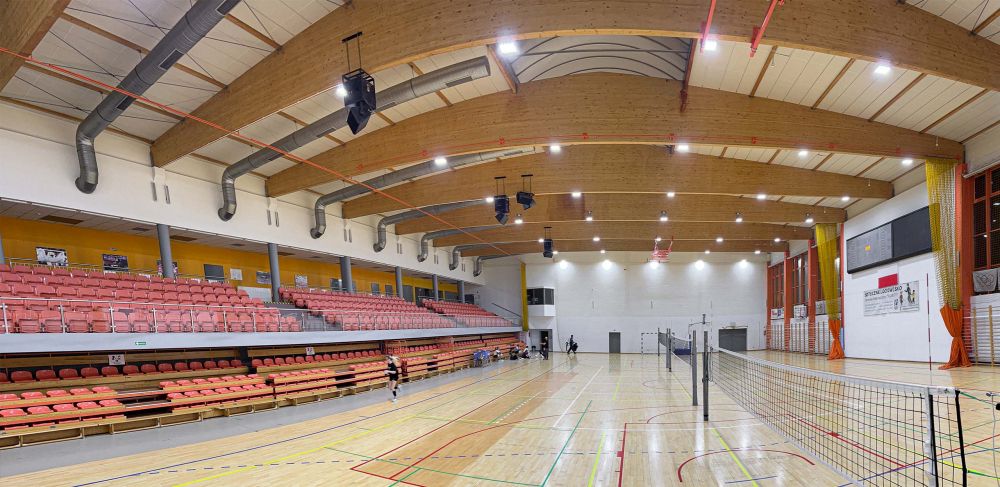

Complex Sports Hall LED Lighting  (1)

Modernization of sports lighting

As part of the modernization of the lighting in the MOSiR sports hall at ul. Bandurskiego 1A in Mikołów, the existing 54 metal halide luminaires with a power of 450W each were dismantled and replaced with modern LED sports projectors in the configuration of 23 x 150W+ 22 x 200W MaxPro LED Sports floodlight

The implementation of the task allowed to reduce the maximum power of lighting in the hall by about 63%, i.e. from 21.6 kW to 7.88 kW - which directly affects the reduction of operating costs of the facility, while increasing the comfort of use and the quality of lighting.

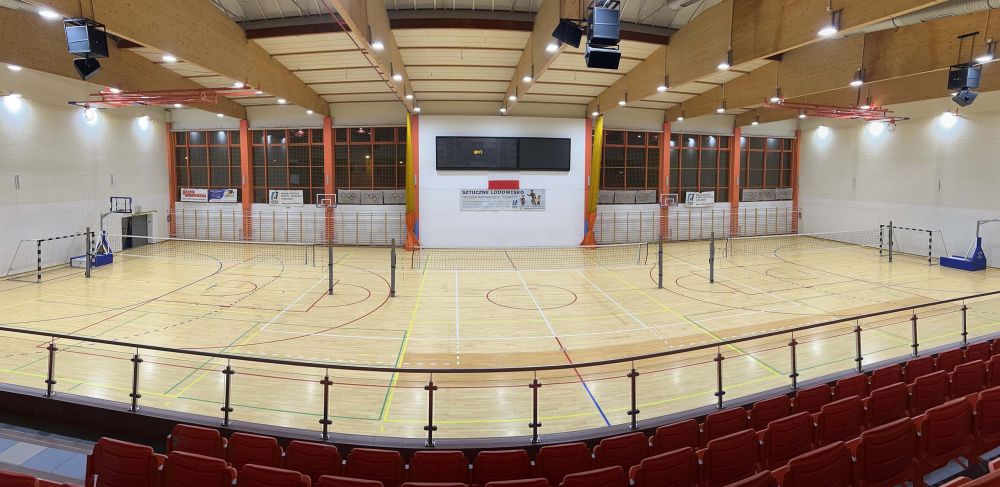

Complex Sports Hall LED Lighting

As-built measurements confirmed the achievement of the uniform average illuminance of 900lux assumed in the project.

The return on investment will be 2 years, with a 5-year warranty on the installed lighting system.


Post time: Jul-09-2021
