1200W Football Field LED Flood Light

Short Description:

The lightwing football field LED flood light is a multifunctional and innovative floodlight manufactured for better illumination. This aerodynamic profile is manufactured using marine quality aluminum. It makes the light low maintenance, durable, and long-lasting. It provides energy-efficient, cost-effective LED lights and lighting solutions for indoor and outdoor sports arenas and stadiums.

Features

-Model NO.: LW-1200

-Lumileds 5050and Osram LEDs, 155-160lm/w

-CRI>Ra75/80/92.

-Beam Angle: 10°/ 30°/ 60°/ 90°/ 80*150°/Asy 30*110°/Asy 30*90°

-Philips, MeanWell and Inventronics LED Drivers, wide AC90V~480V, PF>0.98, low THD<9%

-Suitable for sports field, stadiums , area lighting , port, warehouse , industrial applications , etc…

ENQUIRY ONLINE

Product Detail

Specifications

Download

Product Tags

Overview

√ Junction temperature <69°C.

√ Light transmittance up to 98%.

√ Unique design on appearance. Simple installation, easy disassembly.

√ Aerodynamic profile with low windage figures.

√ Low glare with minimal overspill.

√ High strength PURE aluminum alloy. 30-50% less weight.

√ Made for the harshest environments.

√ Easy to install and focus.

√ Akzo Nobel powder spraying guarantees the best anti-corrosion finish for up to 25 years , AISI304 for all screws.

√ IP68 connectors inside for cabling, much safer and convenient for maintenance.

√ Zigbee Wi-Fi Wireless / DMX512 / DALI dimming models are available.

√ Housing Color: RAL9007, Black, White.

Seeing the best you can be

Its unique design is the first dynamic profile which allows for retrofitting to most existing lighting columns due to its low weight and low windage characteristics.

With high lighting performance standards plus an array of control options, the lightwing is the ideal solution for Sports arenas, Airports, Ports and Industrial environments.

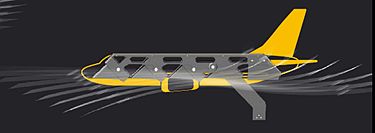

What is lightwing?

Inspired by the aerodynamic design of aircraft to allow for the smooth flow of air over its lightweight aluminium profile, delivering high performance illumination effortlessly.

The innovative design concept of this lightwing floodlight
takes the performance of asysmetric floodlight to the next
level by combination with on-pitch performance with the
control of obtrusive light.

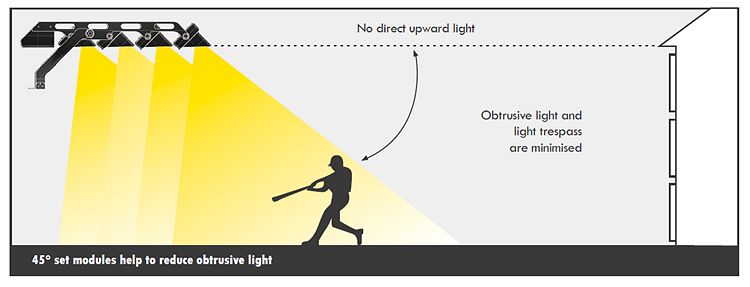

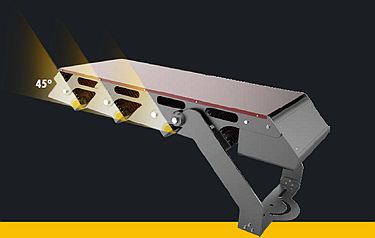

lightwing's modules are 45° to vertical, with the front
face providing an anti obtrusive light barrier.
This barrier dramatically reduces the visibility of the led
light source from outside the area of play

Benefits

- High quality of light output

- Efficient performance delivery

- Lower energy costs and reduced carbon emissions

- Long life with minimal maintenance costs.

- Advanced control options of each luminarie.

Suitable for new or most existing masts/columns.

- Made for the harshest environments.

- Low glare with minimal overspill.

- Bespoke version available.

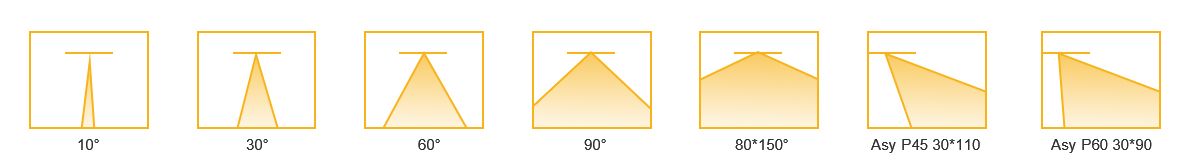

Beam Angles

What are the advantages of lightwing?

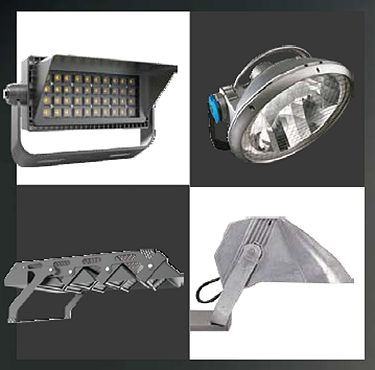

Currently up to 1500W of power easily replaces any conventional MH/HID lamps used in existing stadiums. A retrofit which minimises any additional infrastructural costs to upgrade.

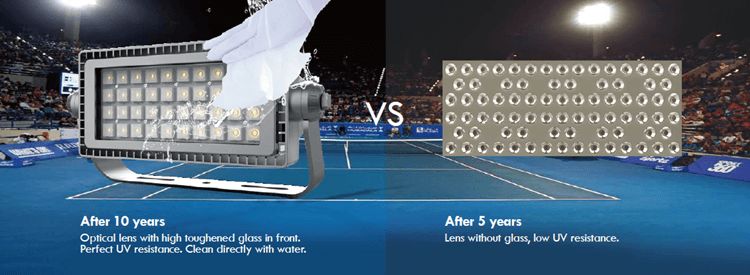

98% transparency

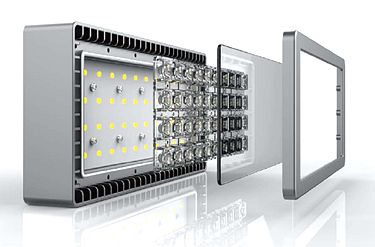

3mm extra clear high toughened glass. Real UV resistance and anti-corrosion even in extreme harsh environment.
The robust protection for lens and easy for cleaning away dust.

Applications

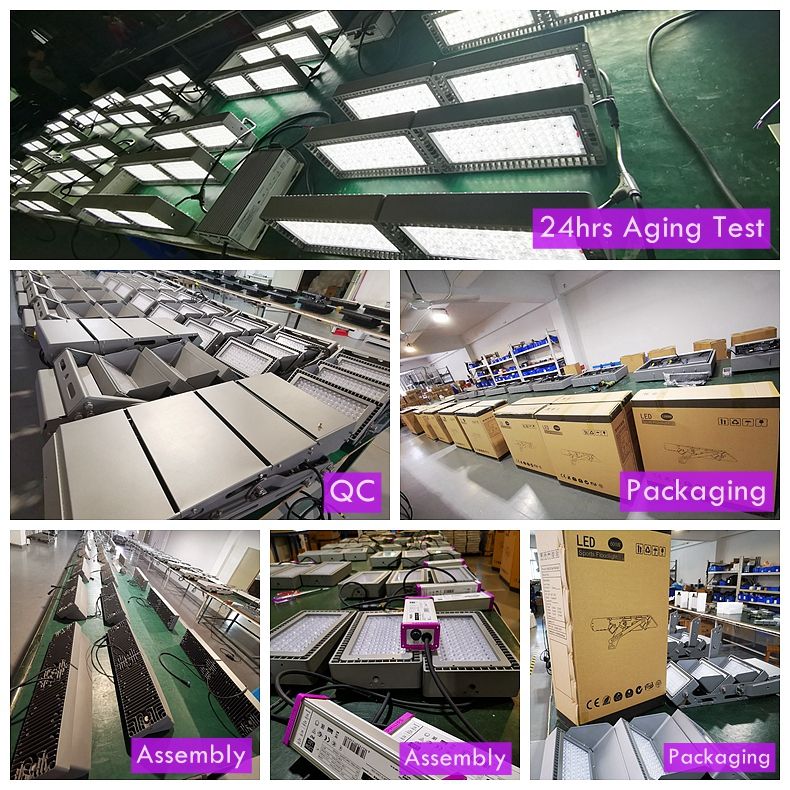

Production and Packaging

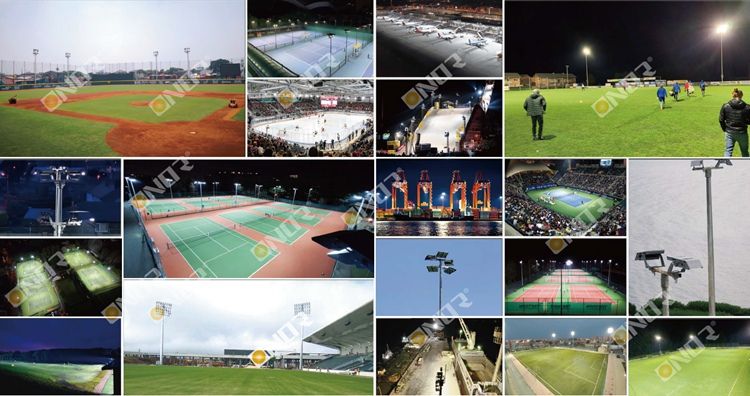

The Projects We have Done

Previous: Spark Mobile Lighting Tower LED Portable Light

Next: 300W Outdoor LED Tennis Court Lighting

Model NO.	LW-200	LW-400	LW-600	LW-800	LW-1200	LW-1600
System Power (watt)	200	400	600	800	1200	1600
Replace (MH/HID)	400W±	900W±	1500W±	2000W±	2500W±	3500W±
Lighting Efficiency	160LM/W
Delivered Lumen (LM)	32,000lm	64,000lm	96,000lm	128,000lm	192,000lm	256,000lm
Input Voltage (V)	AC90-305V, AC347-480V
Power Factor	0.98
Color Temperature (Kelvin)	3500K, 4000K, 5000K, 5700K, 6500K
Beam Angles	10°, 30°, 60°, 90°, 80150°, Asy P45 30110°, Asy P60 30*90°
CRI	74/80/92
Net Weight (with drivers)	5.0Kg	10.5kg 14.0kg (Pro)	12.0kg 9.0kg ( Pro)	22.0Kg 25.0Kg(Pro)	26.0Kg 33.2Kg(Pro)	46.0Kg
Net Weight (without drivers)	3.8Kg	7.7kg 12.0kg (Pro)	18.0kg 15.0kg (Pro)	17.5Kg 20.5Kg(Pro)	22.0Kg 35.9Kg(Pro)	39.0Kg
EPA/Wind Area (m²)	0.028	0.06 0.03 (Pro)	0.12 0.093 (Pro)	0.16 0.13 (Pro)	0.24 0.21 (Pro)	0.31
Operating Temp (℃)	-40℃ ~ +55℃
Surge Protection Device	20KV
Ingress Protection	IP67
Housing Color	RAL9007, Black, White

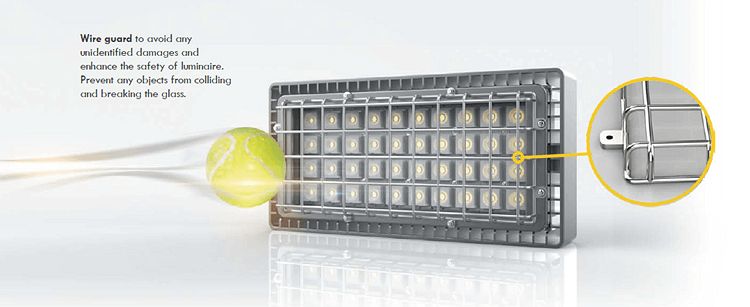

Hardware Materials	AISI304 for bracket,screws,fasteners, gasket (AISI316 for harsh environment) Aluminum for driver box, visor, AISI304 for wire guard
Electrical Insulation Class	I
Dimming Control (optional)	Switch,Zigbee Wireless,Dali,DMX
Surface Treatment	Gavanizing for brackets,visor,cover,Sand-blasting for aluminum parts,Akzo Nobel Powder Coating for All
Expected Life Span (hrs)	>100,000 hrs.
Warranty	10-Years on the LEDs, 7-Years on the Driver; Complete Warranty @ www.onorlighting.com
